Instruction of mini skid loader
HY380 is a versatile mini skid steer loader. 360° skid steer type, Small Compact body, easy to handle,
they can link with different attachments for a variety of job need, such as mini digger. Widely used in
gardens, manufacturing, recycling, roads, buildings, construction, farms, cave, chemical plant and so on.
Features of mini skid loader
1. Engine: American Briggs& Stratton Petrol Engine and Diesel Engine Optional
2. Pump: Gear Pump
3. Tires: Engineer Tires. Optional: Solid Tires, Grass Tires, Crawler.
4. With a standard bucket. Or it can not be optional.
5. Optional Configuration: Italy Servo Controller.(Joystick).

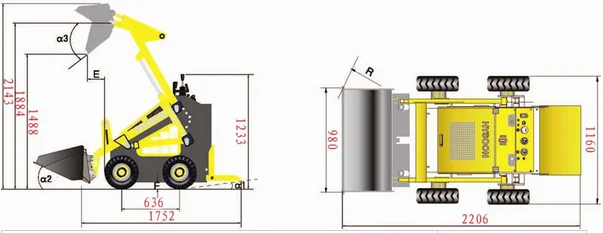

Specification of mini skid loader
1)Size | |
Dimension | 2206mm* 1160mm* 1233mm |
Length | 2206mm |
Width | 1160mm |
Height | 1233mm |
Bucket Width(K) | 1150mm |
Max Working Height | 2143mm |
Max Dumping Height | 1488mm |
Max Dumping Distance | 348mm |
Total Length without Bucket | 1752mm |
Turn Radius forward Turning | 1307mm |
2)Engine | |
Rated Power (KW) | 17.1KW(23hp) |
Rotating Speed | 3600rpm |
Noise(Dd) | ≤95 |
3)Hydraulic | |
Pressure | 17Mpa |
Operating Load | 200kg |
Bucket Capacity | 0.15m³ |
Max Lifting Force | 375kg |
Travel Speed | 0-5.5km/h |
Weight | 890kg |
| |
4)Configuration | |
Engine | 23hp American Briggs& Stratton gasoline engine, 3 year international warranty service. |
Parts | Imported Italy hydrocontrol valves; |
Tires | With engineering tires. Optional: Solid tires, grass tires, track(crawler). |
Optional Configuration | Italy joystick system, three pump & valves for Optional: Diesel engine for optional |
Operating | With a back pedal plate, standing operating. |

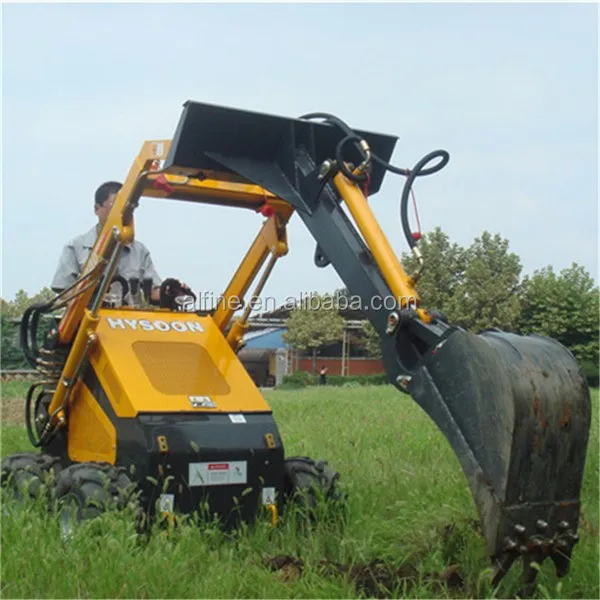

Attachment of mini skid loader
